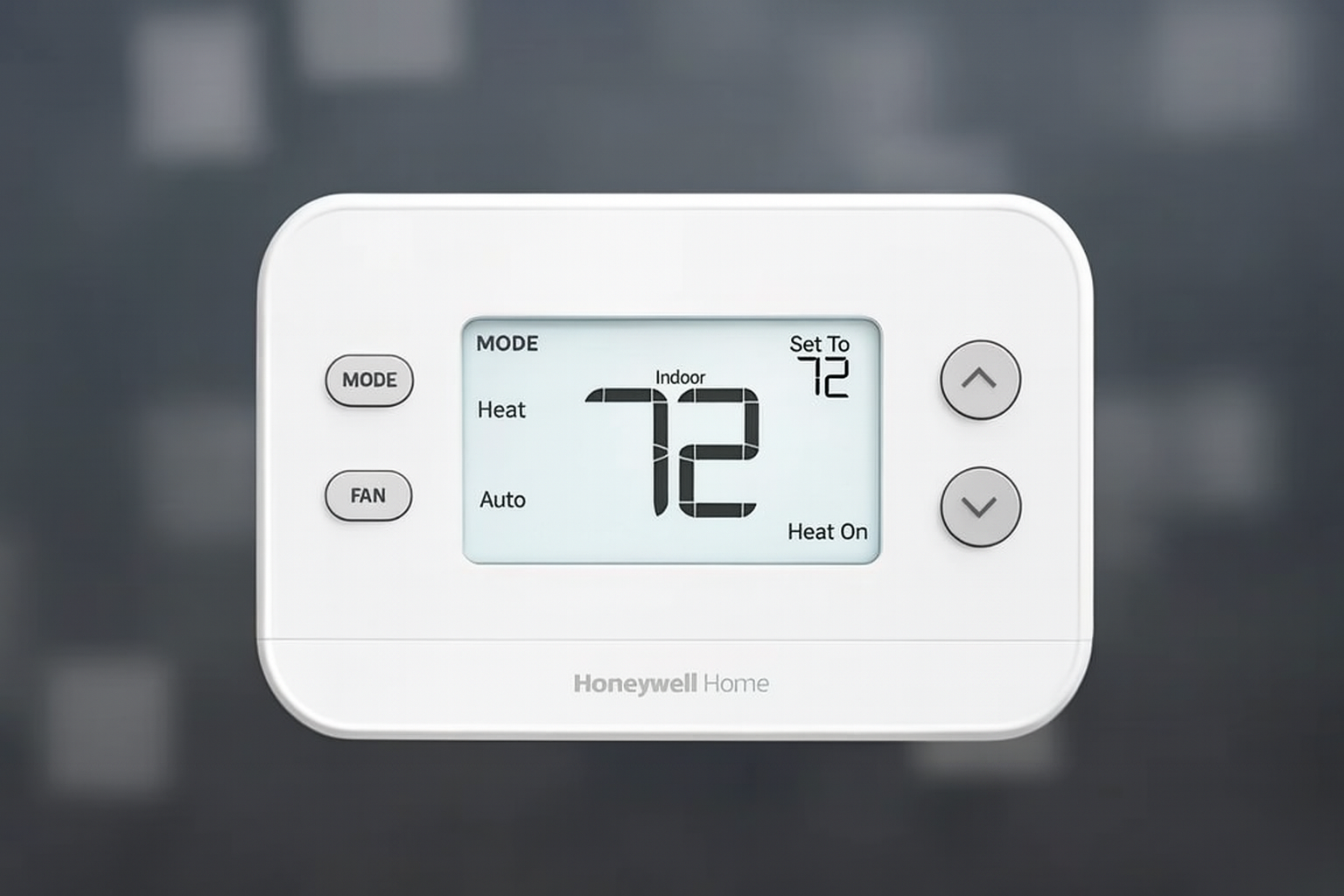

Honeywell TH2320WF4010 FocusPRO S200 Smart Thermostat
Honeywell TH2320WF4010 FocusPRO S200 Smart Thermostat
Couldn't load pickup availability
TH2320WF4010) brings app control and flexible scheduling to advanced systems—including dual-fuel heat pumps. It installs quickly on the UWP® universal wall plate, supports a wired outdoor sensor for smarter balance-point control, and connects to 2.4 or 5 GHz Wi-Fi so you can manage comfort from anywhere using the First Alert by Resideo app or voice assistants. It’s also ENERGY STAR® certified.
System Compatibility
- Smart Wi-Fi Thermostat
- Multi-stage systems
- 2 Heat / 2 Cool Conventional
- 3 Heat / 2 Cool Heat Pump
What it Does Well
Covers Complex Systems
Runs up to 3H/2C heat pumps (dual-fuel capable) or 2H/2C conventional equipment.
Control from Anywhere
Works with the First Alert by Resideo app and integrates with Alexa and Google Assistant.
Flexible Schedules
Choose 7-day, 5-1-1, 5-2, or 1-week programming—or turn scheduling off.
Outdoor-sensor Ready (3H/2C Model)
Accepts the C7089U1006 wired sensor for lockouts or balance-point control.
Fast, Clean Installs
UWP® wall plate standardizes wiring and hole pattern; setup can be done on-device or with the Resideo Pro app.
Clear, Back-lit Display & Handy Options
Large screen with optional always-on backlight, filter reminders, and a fan-lockout-after-cool setting.
If you want a clear, easy-to-use thermostat that handles multi-stage and dual-fuel jobs—and adds app and voice control—the FocusPRO S200 TH2320WF4010 is a solid fit for both homeowners and pros.
Key Specifications
| System staging | 3H/2C heat pump or 2H/2C conventional (TH2320WF4010 model) |
| Power & wiring | 24 VAC with R & C required (C-wire needed for S200 smart models) |
| Wi-Fi | 2.4 GHz or 5 GHz home networks |
| Set-point ranges | Heat 32–90 °F · Cool 50–99 °F |
| Operating conditions | 32–120 °F, 5–90% RH non-condensing |
| Electrical (device input) | 1.1 VA @ 24 VAC, 60 Hz |
| Typical control terminals | W, W2/Aux, E, Y, Y2, G, O/B, L/A, R, C |
| Size (H × W × D) | 3.43 × 5.13 × 1.17 in (87 × 130 × 30 mm) |
What’s in The Box
Thermostat TH2320WF4010, UWP® wall plate, decorative cover/J-box adapter, mounting hardware, and install/user literature.
What it Replaces
- TH6220D1002/U
- TH6220D1028/U
- TH2210DH1000/U
- TH4210U2002/U
How Do FocusPro Models Compare?
| Model | Programmable | Wi-Fi | System compatibility (24 VAC systems) | Staging (Conventional / Heat Pump) | Power options |
|---|---|---|---|---|---|
| TH1110U4000 (FocusPRO N100) | No | No | Single-stage heat/cool, incl. heat pump without aux heat | 1H/1C / 1H/1C | Batteries or24 VAC (C-wire) |
| TH1320U4002 (FocusPRO N100) | No | No | Most 24 VAC systems; dual fuel & outdoor sensor | 2H/2C / 3H/2C | Batteries or24 VAC (C-wire) |
| TH2110U4004 (FocusPRO P200) | No | No | Single-stage conventional or heat pump (no aux) | 1H/1C / 1H/1C | Batteries or24 VAC (C-wire) |
| TH2110WF4008 (FocusPRO S200) | Yes | Yes | Single-stage conventional or heat pump (no aux) | 1H/1C / 1H/1C | 24 VAC with Rc & C required(no battery power) |
| TH2320U4006 (FocusPRO P200) | Yes | No | Most 24 VAC systems; dual fuel & outdoor sensor capable | 2H/2C / 3H/2C | Batteries or24 VAC (C-wire) |
| TH2320WF4010 (FocusPRO S200)(this model) | Yes | Yes | Most 24 VAC systems; dual fuel & outdoor sensor capable | 2H/2C / 3H/2C | 24 VAC with Rc & C required(no battery power) |
*This Thermostat is not Goodman or Daikin Communicating systems.
